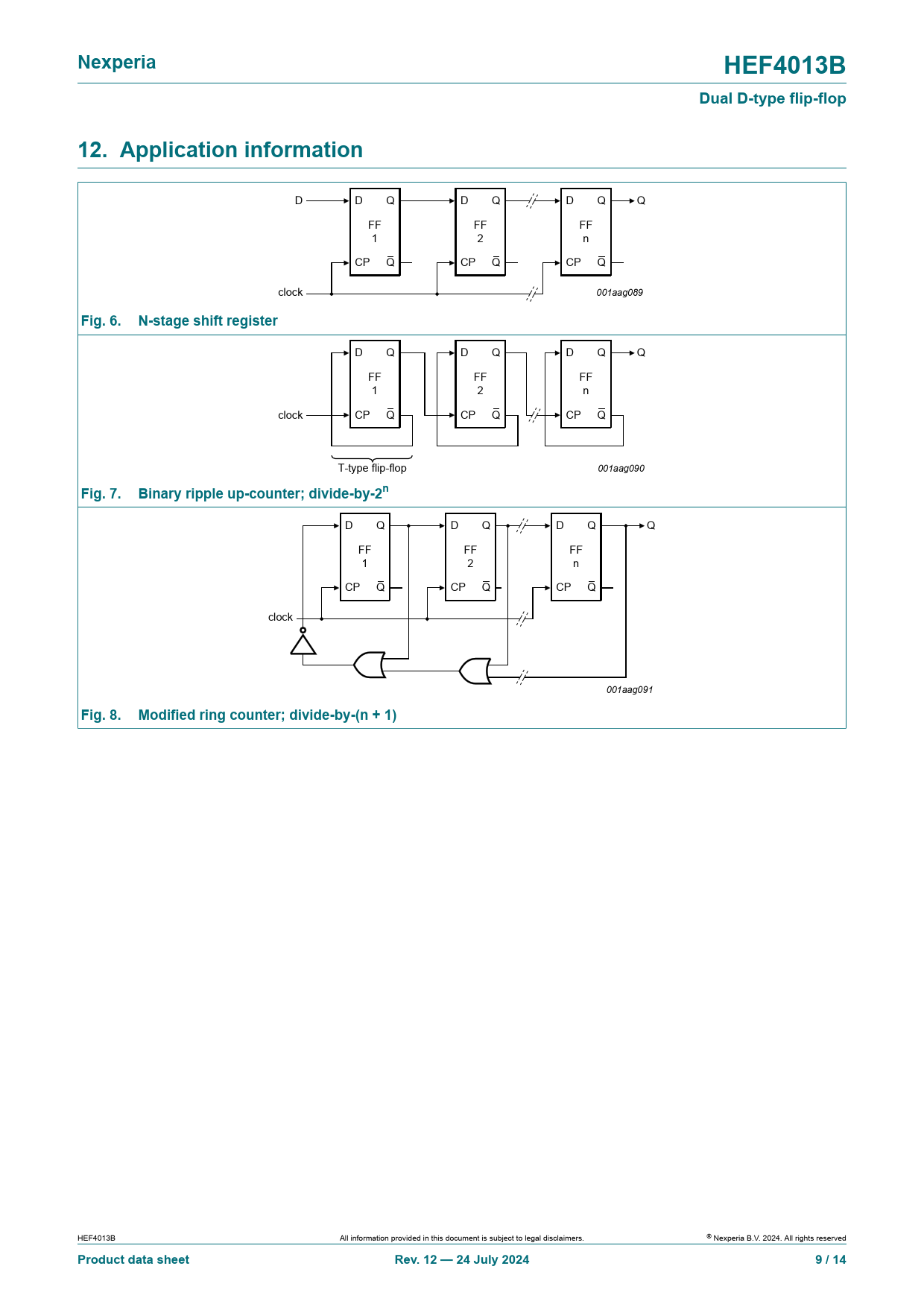

Nexperia HEF4013B Dual D-type flip-flop 12. Application information
D D Q D Q D Q Q FF FF FF 1 2 n CP Q CP Q CP Q clock 001aag089
Fig. 6. N-stage shift register
D Q D Q D Q Q FF FF FF 1 2 n clock CP Q CP Q CP Q T-type flip-flop 001aag090
Fig. 7. Binary ripple up-counter; divide-by-2n
D Q D Q D Q Q FF FF FF 1 2 n CP Q CP Q CP Q clock 001aag091
Fig. 8. Modified ring counter; divide-by-(n + 1)
