OP282/OP482 Data Sheet 1.165 1.128 0.347 0.347 1.090 BSC BSC 3 2 1 A BALL A1 0.20 B IDENTIFIER BSC 2.160 C 2.123 D 1.60 2.085 E REF F G H J 0.40 BSC TOP VIEW BOTTOM VIEW (BALL SIDE DOWN) (BALL SIDE UP) 0.694 0.415 0.645 REF 0.400 0.600 END VIEW 0.385 0.555 COPLANARITY 0.05 0.230 SEATING 0.287 PLANE 0.200 0.267 B 0.170 0.247 2012- 1- 1 09-

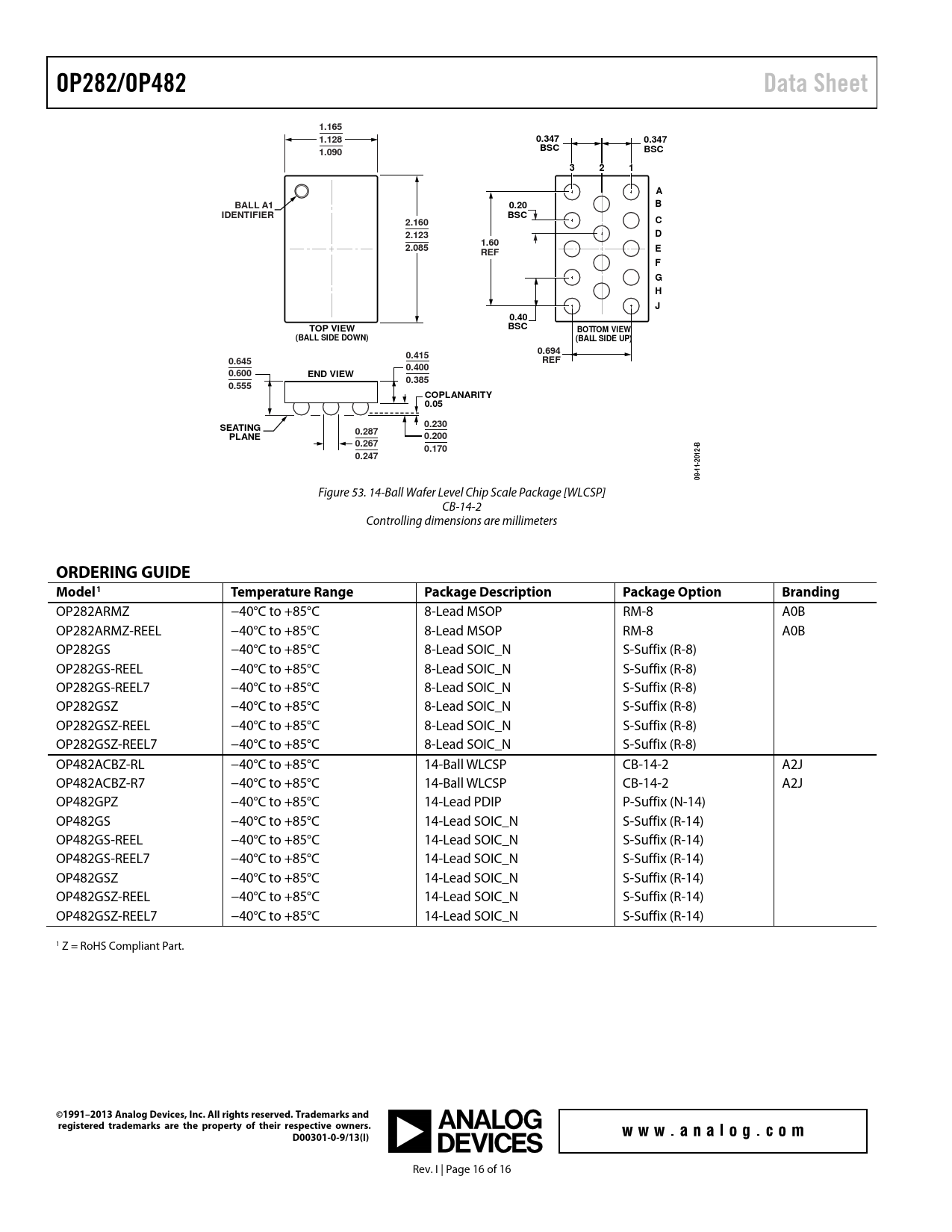

Figure 53. 14-Ball Wafer Level Chip Scale Package [WLCSP] CB-14-2 Controlling dimensions are millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Branding
OP282ARMZ −40°C to +85°C 8-Lead MSOP RM-8 A0B OP282ARMZ-REEL −40°C to +85°C 8-Lead MSOP RM-8 A0B OP282GS −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP282GS-REEL −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP282GS-REEL7 −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP282GSZ −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP282GSZ-REEL −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP282GSZ-REEL7 −40°C to +85°C 8-Lead SOIC_N S-Suffix (R-8) OP482ACBZ-RL −40°C to +85°C 14-Ball WLCSP CB-14-2 A2J OP482ACBZ-R7 −40°C to +85°C 14-Ball WLCSP CB-14-2 A2J OP482GPZ −40°C to +85°C 14-Lead PDIP P-Suffix (N-14) OP482GS −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) OP482GS-REEL −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) OP482GS-REEL7 −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) OP482GSZ −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) OP482GSZ-REEL −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) OP482GSZ-REEL7 −40°C to +85°C 14-Lead SOIC_N S-Suffix (R-14) 1 Z = RoHS Compliant Part.
