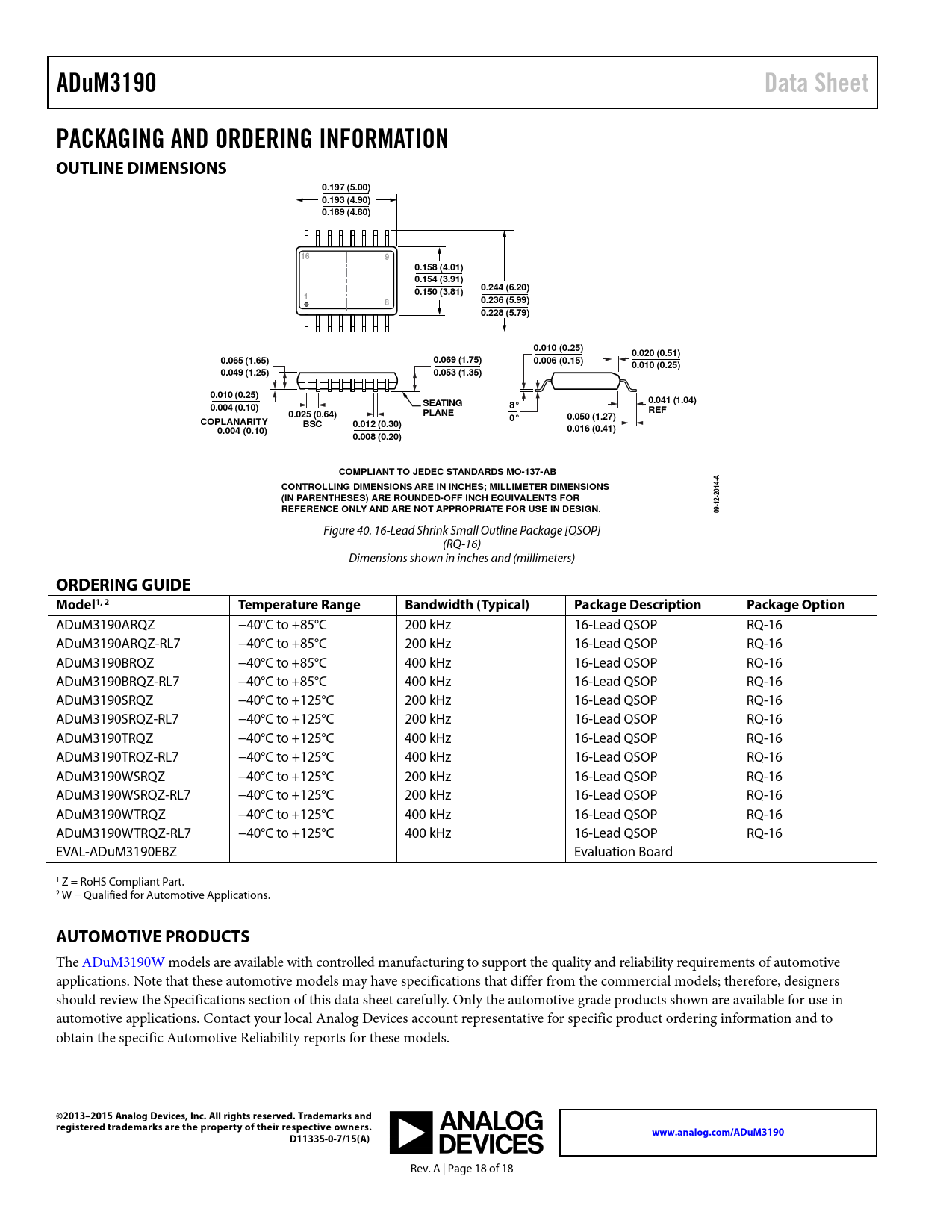

ADuM3190 Data Sheet PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS 0.197 (5.00) 0.193 (4.90) 0.189 (4.80) 16 9 0.158 (4.01) 0.154 (3.91) 0.150 (3.81) 0.244 (6.20) 1 8 0.236 (5.99) 0.228 (5.79) 0.010 (0.25) 0.020 (0.51) 0.065 (1.65) 0.069 (1.75) 0.006 (0.15) 0.010 (0.25) 0.049 (1.25) 0.053 (1.35) 0.010 (0.25) SEATING 0.041 (1.04) 0.004 (0.10) 8° REF 0.025 (0.64) PLANE 0.050 (1.27) 0° COPLANARITY BSC 0.012 (0.30) 0.016 (0.41) 0.004 (0.10) 0.008 (0.20) COMPLIANT TO JEDEC STANDARDS MO-137-AB A CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS 2014- (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR 12- REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 09-
Figure 40. 16-Lead Shrink Small Outline Package [QSOP] (RQ-16) Dimensions shown in inches and (millimeters)
ORDERING GUIDE Model1, 2 Temperature Range Bandwidth (Typical) Package Description Package Option
ADuM3190ARQZ −40°C to +85°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190ARQZ-RL7 −40°C to +85°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190BRQZ −40°C to +85°C 400 kHz 16-Lead QSOP RQ-16 ADuM3190BRQZ-RL7 −40°C to +85°C 400 kHz 16-Lead QSOP RQ-16 ADuM3190SRQZ −40°C to +125°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190SRQZ-RL7 −40°C to +125°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190TRQZ −40°C to +125°C 400 kHz 16-Lead QSOP RQ-16 ADuM3190TRQZ-RL7 −40°C to +125°C 400 kHz 16-Lead QSOP RQ-16 ADuM3190WSRQZ −40°C to +125°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190WSRQZ-RL7 −40°C to +125°C 200 kHz 16-Lead QSOP RQ-16 ADuM3190WTRQZ −40°C to +125°C 400 kHz 16-Lead QSOP RQ-16 ADuM3190WTRQZ-RL7 −40°C to +125°C 400 kHz 16-Lead QSOP RQ-16 EVAL-ADuM3190EBZ Evaluation Board 1 Z = RoHS Compliant Part. 2 W = Qualified for Automotive Applications.
AUTOMOTIVE PRODUCTS
The ADuM3190W models are available with control ed manufacturing to support the quality and reliability requirements of automotive applications. Note that these automotive models may have specifications that differ from the commercial models; therefore, designers should review the Specifications section of this data sheet careful y. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models.
