Datasheet Datasheet ATtiny24A, ATtiny44A, ATtiny84A. Summary (Microchip) - 17

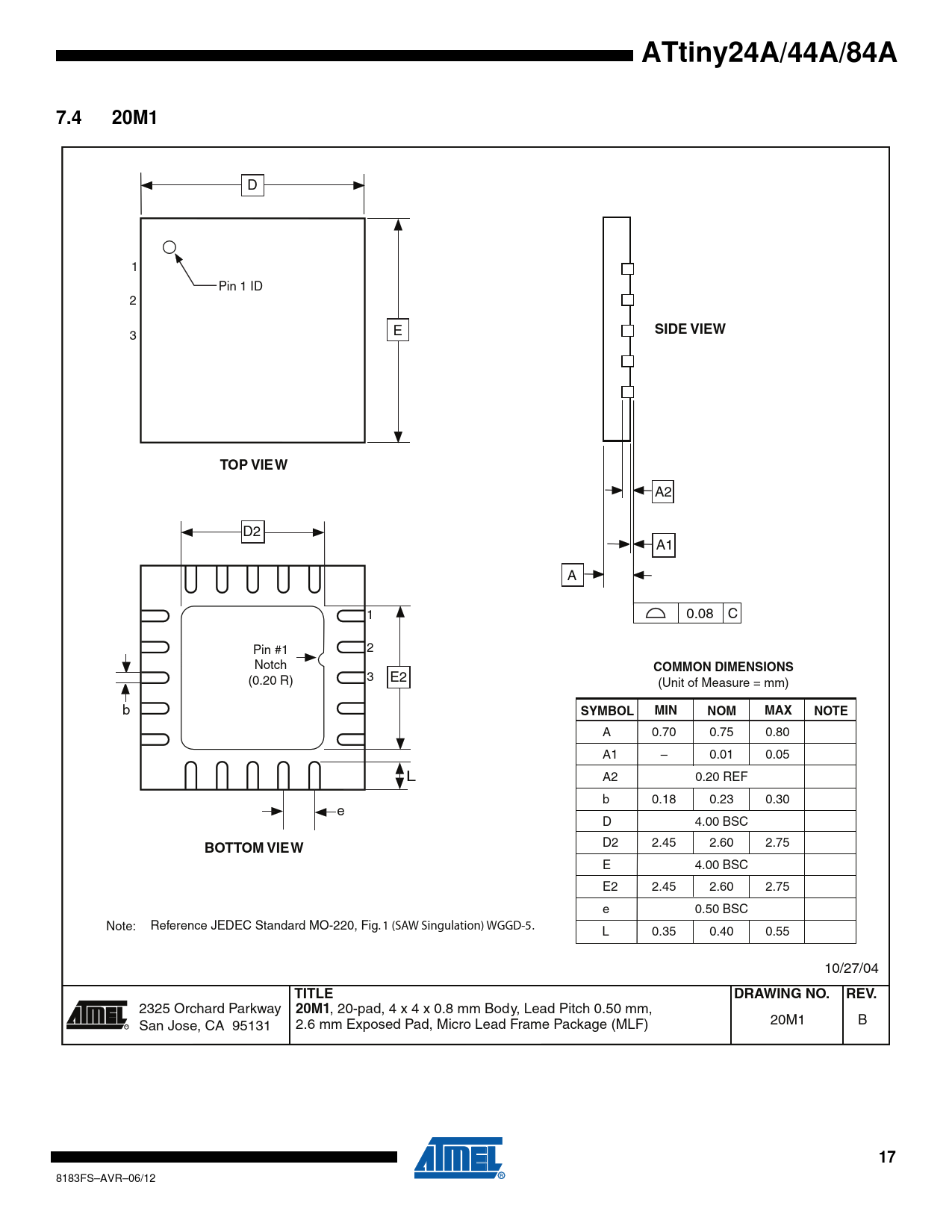

ATtiny24A/44A/84A 7.4 20M1
D 1 Pin 1 ID 2 E
SIDE VIEW
3
TOP VIEW
A2 D2 A1 A 1 0.08 C Pin #1 2 Notch
COMMON DIMENSIONS
(0.20 R) 3 E2 (Unit of Measure = mm) b
SYMBOL MIN NOM MAX NOTE
A 0.70 0.75 0.80 A1 – 0.01 0.05 L A2 0.20 REF b 0.18 0.23 0.30 e D 4.00 BSC D2 2.45 2.60 2.75
BOTTOM VIEW
E 4.00 BSC E2 2.45 2.60 2.75 e 0.50 BSC Note: Reference JEDEC Standard MO-220, Fig. 1 (SAW Singulation) WGGD-5. L 0.35 0.40 0.55 10/27/04
TITLE DRAWING NO. REV.
2325 Orchard Parkway
20M1
, 20-pad, 4 x 4 x 0.8 mm Body, Lead Pitch 0.50 mm, 20M1 B 2.6 mm Exposed Pad, Micro Lead Frame Package (MLF) R San Jose, CA 95131
