KSZ8873MLL/FLL/RLL

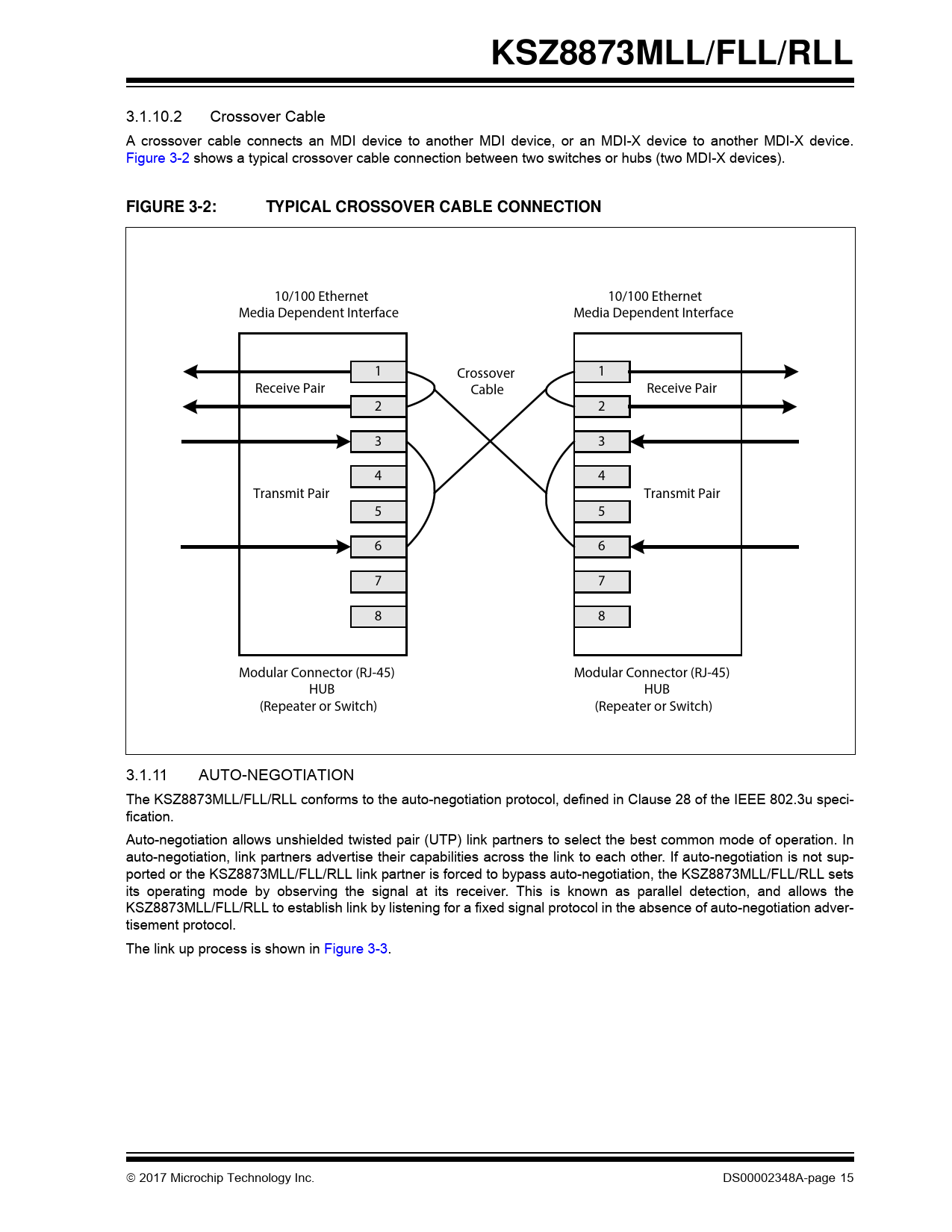

3.1.10.2 Crossover Cable A crossover cable connects an MDI device to another MDI device, or an MDI-X device to another MDI-X device. Figure 3-2 shows a typical crossover cable connection between two switches or hubs (two MDI-X devices).
FIGURE 3-2: TYPICAL CROSSOVER CABLE CONNECTION
10/100 Ethernet 10/100 Ethernet Media Dependent Interface Media Dependent Interface 1 Crossover 1 Receive Pair Cable Receive Pair 2 2 3 3 4 4 Transmit Pair Transmit Pair 5 5 6 6 7 7 8 8 Modular Connector (RJ-45) Modular Connector (RJ-45) HUB HUB (Repeater or Switch) (Repeater or Switch) 3.1.11 AUTO-NEGOTIATION The KSZ8873MLL/FLL/RLL conforms to the auto-negotiation protocol, defined in Clause 28 of the IEEE 802.3u speci- fication. Auto-negotiation allows unshielded twisted pair (UTP) link partners to select the best common mode of operation. In auto-negotiation, link partners advertise their capabilities across the link to each other. If auto-negotiation is not sup- ported or the KSZ8873MLL/FLL/RLL link partner is forced to bypass auto-negotiation, the KSZ8873MLL/FLL/RLL sets its operating mode by observing the signal at its receiver. This is known as parallel detection, and allows the KSZ8873MLL/FLL/RLL to establish link by listening for a fixed signal protocol in the absence of auto-negotiation adver- tisement protocol. The link up process is shown in Figure 3-3.  2017 Microchip Technology Inc. DS00002348A-page 15 Document Outline 1.0 Introduction 1.1 General Description 2.0 Pin Description and Configuration 3.0 Functional Description 3.1 Physical Layer Transceiver 3.2 Power Management 3.3 MAC and Switch 3.4 Advanced Switch Functions 3.5 Spanning Tree Support 3.6 Rapid Spanning Tree Support 3.7 Tail Tagging Mode 3.8 IGMP Support 3.9 Port Mirroring Support 3.10 Rate Limiting Support 3.11 Unicast MAC Address Filtering 3.12 Configuration Interface 3.13 Loopback Support 4.0 Register Descriptions 4.1 MII Management (MIIM) Registers 4.2 Register Descriptions 4.3 Memory Map (8-Bit Registers) 4.4 Register Descriptions 4.5 Advanced Control Registers (Registers 96-198) 4.6 Static MAC Address Table 4.7 VLAN Table 4.8 Dynamic MAC Address Table 4.9 Management Information Base (MIB) Counters 5.0 Operational Characteristics 5.1 Absolute Maximum Ratings* 5.2 Operating Ratings** 6.0 Electrical Characteristics 7.0 Timing Specifications 7.1 EEPROM Timing 7.2 MAC Mode MII Timing 7.3 PHY Mode MII Timing 7.4 RMII Timing 7.5 I2C Slave Mode Timing 7.6 SPI Input Timing 7.7 SPI Output Timing 7.8 Auto-Negotiation Timing 7.9 MDC/MDIO Timing 7.10 Reset Timing 8.0 Reset Circuit 9.0 Selection of Isolation Transformers 10.0 Package Outline Appendix A: Data Sheet Revision History Product Identification System Worldwide Sales and Service
