Datasheet LTC6652 (Analog Devices) - 16
| Производитель | Analog Devices |
| Описание | Precision Low Drift Low Noise Buffered Reference |
| Страниц / Страница | 20 / 16 — typical applications. Extended Supply Range Reference. Negative Rail … |
| Формат / Размер файла | PDF / 561 Кб |
| Язык документа | английский |
typical applications. Extended Supply Range Reference. Negative Rail Circuit. Boosted Output Current
Модельный ряд для этого даташита
Текстовая версия документа
LTC6652

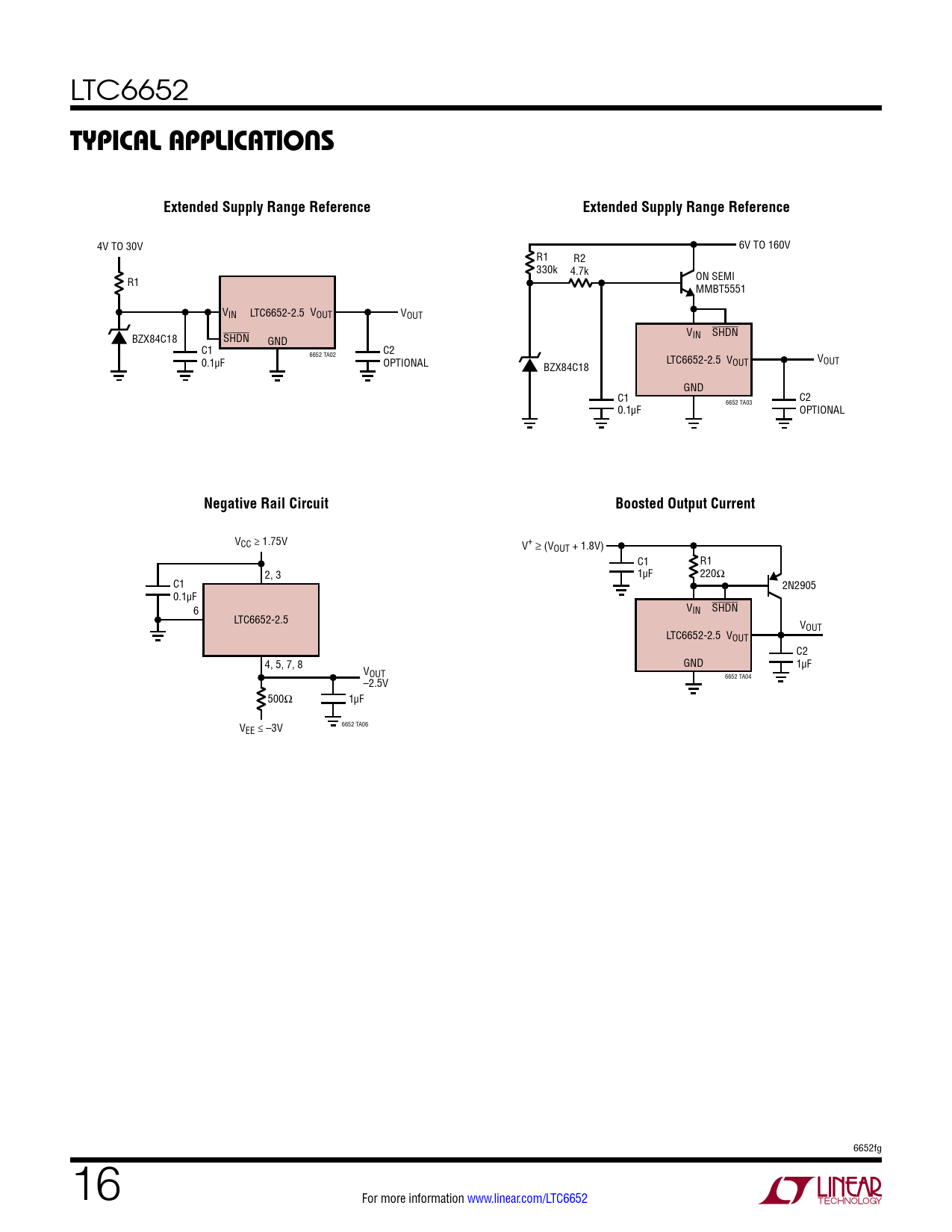

typical applications Extended Supply Range Reference Extended Supply Range Reference
4V TO 30V 6V TO 160V R1 R2 330k 4.7k R1 ON SEMI MMBT5551 VIN LTC6652-2.5 VOUT VOUT V BZX84C18 SHDN SHDN GND IN C1 C2 6652 TA02 0.1µF OPTIONAL LTC6652-2.5 V V OUT OUT BZX84C18 GND C1 C2 6652 TA03 0.1µF OPTIONAL
Negative Rail Circuit Boosted Output Current
VCC ≥ 1.75V V+ ≥ (VOUT + 1.8V) C1 R1 2, 3 1µF 220Ω C1 2N2905 0.1µF V 6 IN SHDN LTC6652-2.5 VOUT LTC6652-2.5 VOUT C2 4, 5, 7, 8 GND 1µF VOUT 6652 TA04 –2.5V 500Ω 1µF V 6652 TA06 EE ≤ –3V 6652fg 16 For more information www.linear.com/LTC6652 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
