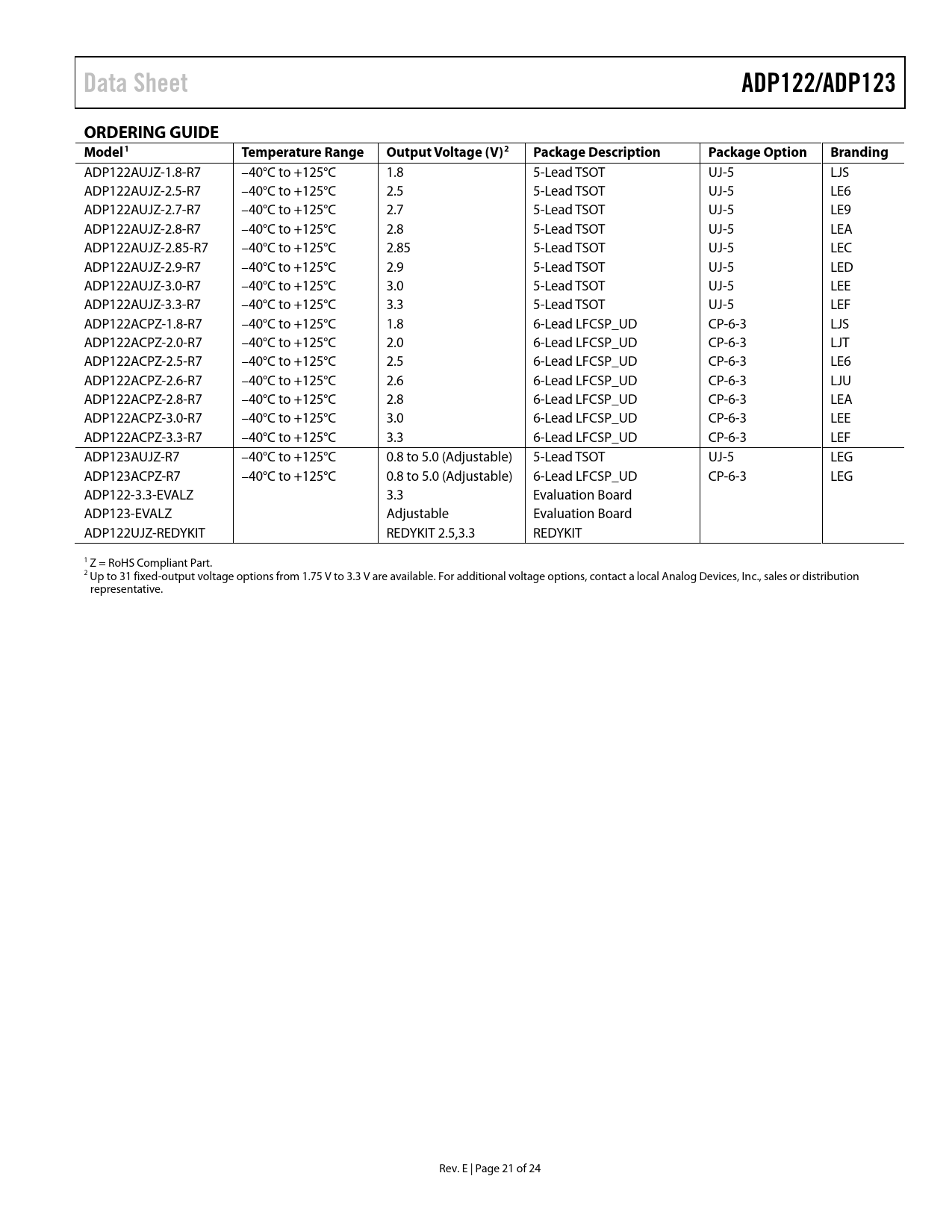

Data Sheet ADP122/ADP123 ORDERING GUIDE Model1 Temperature Range Output Voltage (V)2 Package Description Package Option Branding
ADP122AUJZ-1.8-R7 –40°C to +125°C 1.8 5-Lead TSOT UJ-5 LJS ADP122AUJZ-2.5-R7 –40°C to +125°C 2.5 5-Lead TSOT UJ-5 LE6 ADP122AUJZ-2.7-R7 –40°C to +125°C 2.7 5-Lead TSOT UJ-5 LE9 ADP122AUJZ-2.8-R7 –40°C to +125°C 2.8 5-Lead TSOT UJ-5 LEA ADP122AUJZ-2.85-R7 –40°C to +125°C 2.85 5-Lead TSOT UJ-5 LEC ADP122AUJZ-2.9-R7 –40°C to +125°C 2.9 5-Lead TSOT UJ-5 LED ADP122AUJZ-3.0-R7 –40°C to +125°C 3.0 5-Lead TSOT UJ-5 LEE ADP122AUJZ-3.3-R7 –40°C to +125°C 3.3 5-Lead TSOT UJ-5 LEF ADP122ACPZ-1.8-R7 –40°C to +125°C 1.8 6-Lead LFCSP_UD CP-6-3 LJS ADP122ACPZ-2.0-R7 –40°C to +125°C 2.0 6-Lead LFCSP_UD CP-6-3 LJT ADP122ACPZ-2.5-R7 –40°C to +125°C 2.5 6-Lead LFCSP_UD CP-6-3 LE6 ADP122ACPZ-2.6-R7 –40°C to +125°C 2.6 6-Lead LFCSP_UD CP-6-3 LJU ADP122ACPZ-2.8-R7 –40°C to +125°C 2.8 6-Lead LFCSP_UD CP-6-3 LEA ADP122ACPZ-3.0-R7 –40°C to +125°C 3.0 6-Lead LFCSP_UD CP-6-3 LEE ADP122ACPZ-3.3-R7 –40°C to +125°C 3.3 6-Lead LFCSP_UD CP-6-3 LEF ADP123AUJZ-R7 –40°C to +125°C 0.8 to 5.0 (Adjustable) 5-Lead TSOT UJ-5 LEG ADP123ACPZ-R7 –40°C to +125°C 0.8 to 5.0 (Adjustable) 6-Lead LFCSP_UD CP-6-3 LEG ADP122-3.3-EVALZ 3.3 Evaluation Board ADP123-EVALZ Adjustable Evaluation Board ADP122UJZ-REDYKIT REDYKIT 2.5,3.3 REDYKIT 1 Z = RoHS Compliant Part. 2 Up to 31 fixed-output voltage options from 1.75 V to 3.3 V are available. For additional voltage options, contact a local Analog Devices, Inc., sales or distribution representative. Rev. E | Page 21 of 24 Document Outline Features Applications General Description Typical Application Circuits Revision History Specifications Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Undervoltage Lockout Enable Feature Current Limit and Thermal Overload Protection Thermal Considerations Junction Temperature Calculations For TSOT Package Junction Temperature Calculations For LFCSP Package Printed Circuit Board Layout Considerations Outline Dimensions Ordering Guide
